Product description

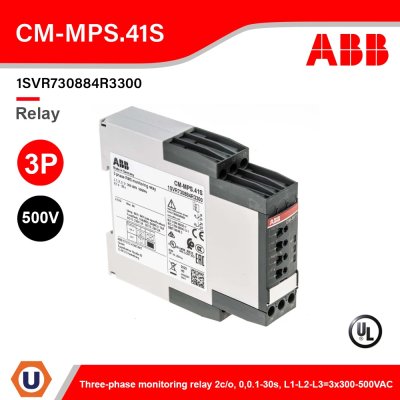

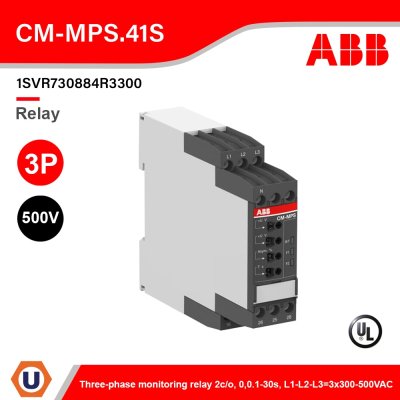

- ABB Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x300-500VAC l CM-MPS.41S l 1SVR730884R3300 l เอบีบี สั่งซื้อได้ที่ร้าน Ucanbuys
- The CM-MPS.41S is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 300-500 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A.
- This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable. Phase sequence monitoring as well as an ON or OFF tripping delay are selectable.
- The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory.
- The device offers screw connection technology with double-chamber cage connection terminals.
