Product description

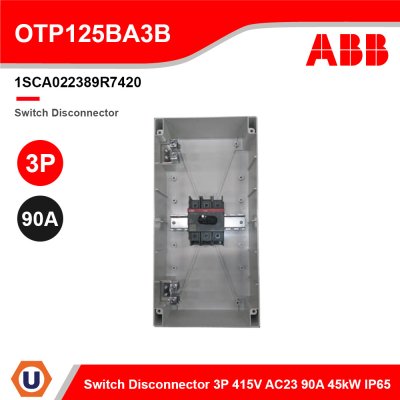

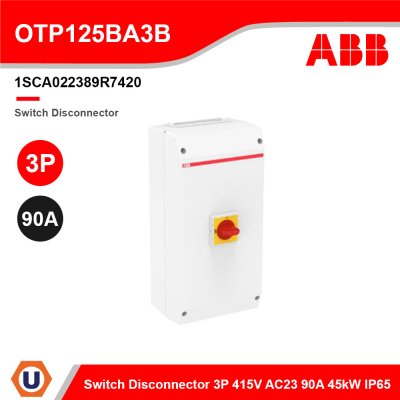

- Encl. Switch Disconnector
- 3-p. 415V AC23 90A, 45kW
- Plastic enclosure
- IP65
- RedYellow Selector handle
- Interlocked cover
- Defeatable interlocking
- The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure
- The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use.
- The cable entries are for I-flanges and have knock out holes, both from top and bottom.
- The handle is padlockable and made for three padlocks.
- The interlocking can be by-passed, for thermographing etc.
- The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal
