EATON Auxiliary Contact Module, 4 pole,16A, 2N/O, 2NC | DILM32-XHI22

SKU : DILM32-XHI22

ขายแล้ว 0 ชิ้น

฿886

จำนวน

มีสินค้าอยู่ในคลัง 200 ชิ้น

แบรนด์: EATON

Product description

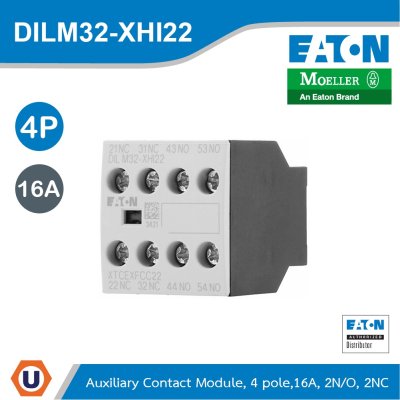

EATON Auxiliary Contact Module, 4 pole,16A, 2N/O, 2NC : DILM32-XHI22
Auxiliary contact module, with interlocked opposing contacts,
Function: for standard applications, 4 pole
Connection technique: Screw terminals, Rated operational current AC-15 220 V 230 V 240 V: Ie= 4 A
Rated operational current AC-15 380 V 400 V 415 V: Ie= 4 A, Contacts N/O = Normally open: 2 N/O, Contacts N/C = Normally closed: 2 NC
Mounting type: Front fixing, For use with: DILM(C)7-10…, DILM(C)9-10…, DILM(C)12-10…, DILM(C)15-10…, DILM(C)17-10…, DILM(C)25-10…, DILM(C)32-10…, DILM38-10…, DILMP20…, DILMP32-10…, DILMP45-10…, DILL…, DILMF8-10…, DILMF11-10…, DILMF14-10…, DILMF17-10…, DILMF25-10…, DILMF32-10…, Type: Front mounting auxiliary contact, Instructions: Interlocked opposing contacts according to IEC/EN 60947-5-1 appendix L, inside the auxiliary contact modules, also for the integrated auxiliary contacts of the DILM 7 - DILM32, Auxiliary contacts used as mirror contacts according to IEC/EN 60947-4-1 Appendix F (not N/C late open)
