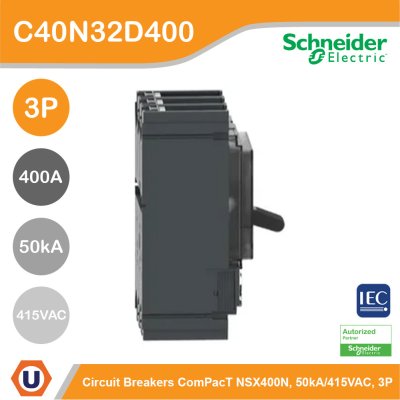

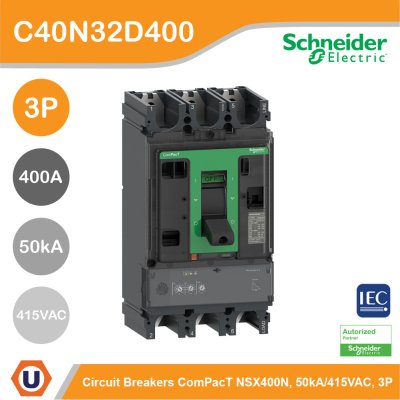

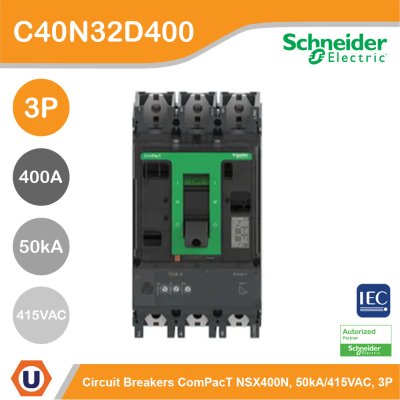

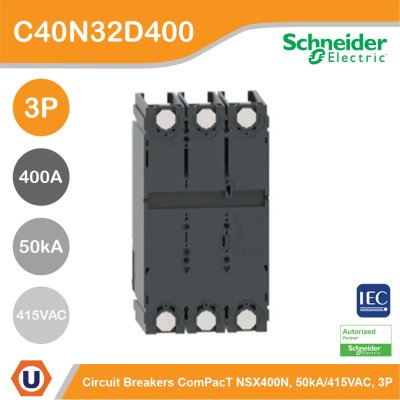

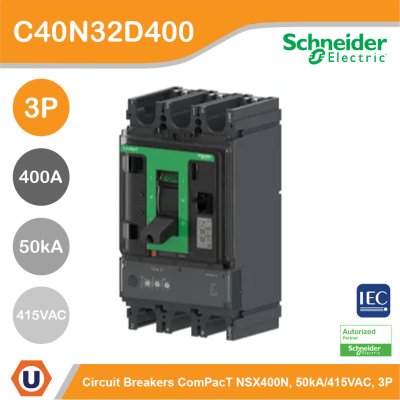

Schneider Electric Circuit breaker ComPacT NSX400N 50kA/415VAC 3P MicroLogic 2.3 trip unit 400A | C40N32D400

✅ Schneider Electric green signature style for the entire ComPacT range
✅ Estimated 40% reduction of wiring time for panel builders
✅ Experience easier installation thanks to a new ergonomic front-plate design
✅ This ComPacT NSX400N is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity.
✅ It is an optimal choice for all standard and specific applications.
✅ The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz.
✅ The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit
✅ with 400A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections
✅ and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories.
✅ It is compliant with international standards (IEC 60947)
✅ CCC, EAC and marine specifications.
✅  ComPacT NSX400N is part of Schneider Electric EcoStruxure Power architecture.
