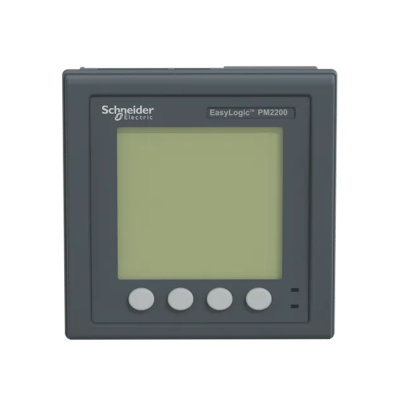

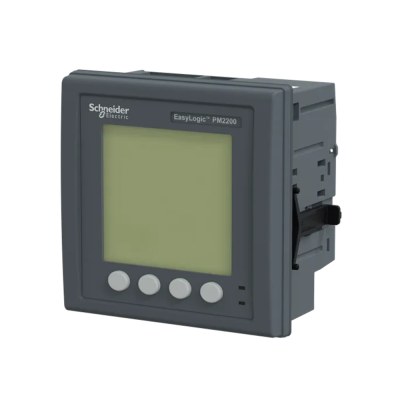

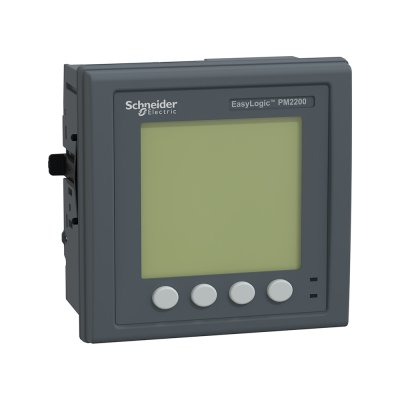

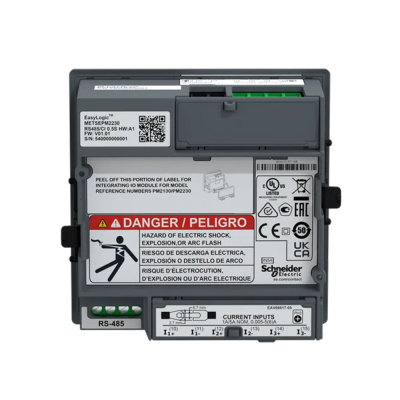

Scheider METSEPM2230 EasyLogic PM2230, Power & Energy meter, up to the 31st harmonic, LCD display, RS485, class 0.5S

Introducing EasyLogic PM2000 series, next generation power meter which offers all the measurement capabilities required to monitor an electrical installation in a single 96 x 96 mm unit. PM2000 meters are available in LED and LCD display variants.

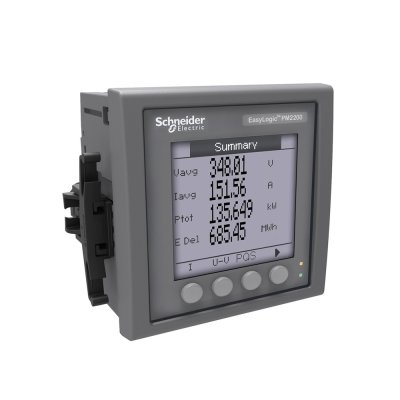

PM2200 series: LCD display type: Monochrome graphical LCD of 128 x 128 resolution lets users read all three phase values simultaneously. The bright display enables easy reading even in extreme lighting conditions and viewing angles., with intuitive menus, multi-language text, icons and graphics.

Network management:
Power quality analysis: THD % and individual harmonics to 15th and 31st order
Measurement of True PF and Displacement PF
Recording Min/Max values of instantaneous parameters with date & timestamp
Optional IO modules comprising either 2 Digital Inputs and 2 Outputs, or 2 Analog Inputs and 2 Outputs for comprehensive WAGES monitoring
Calculates % unbalance for voltage & current
Embedded 2 DI/DO or 2 AI/AO in PM2125 and PM2225 meters

Main characteristics:

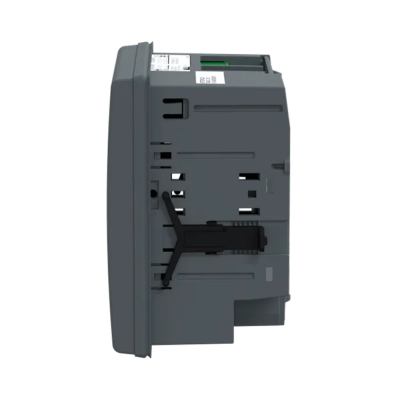

Easy to install: Mounts using two clips, no tools are required. Compact 54 mm depth, connectable up to 480 ±10% AC Volts L-L without voltage transformers for installations compliant with measurement category III, and double insulated.

Easy to operate: Intuitive navigation with self-guided menus and LED for test and calibration on site or lab. Heart-beat LED indicates normal functioning and communication status if connected to RS-485 network.

Product standard compliance

• Active energy Class 1.0 as per IEC 62053-21
• Active energy Class 0.5S as per IEC 62053-22 (partial compliance for active energy test clause only)
• Reactive energy Class 1.0 as per IEC 62053-24 (partial compliance for reactive energy test clause only)
• Tested in accordance with IEC 62052-11 standard for
• 5 A, I-nominal
• 1 A, I-nominal (field settable).
